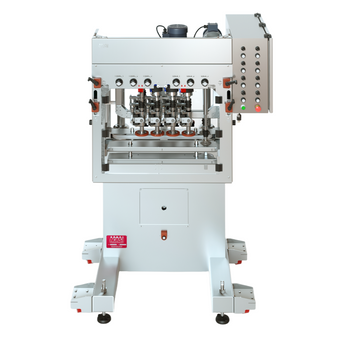

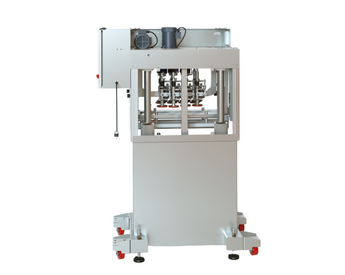

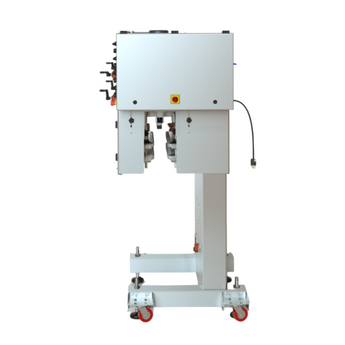

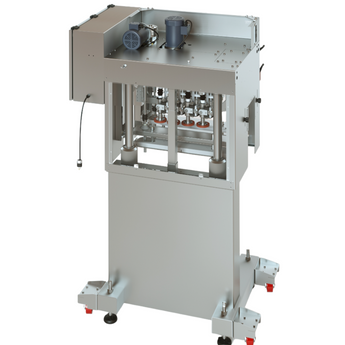

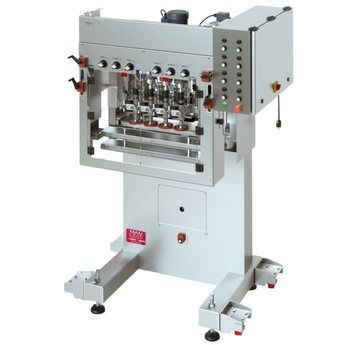

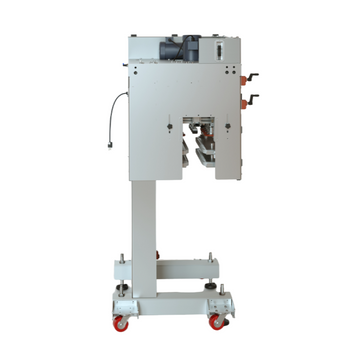

Inline Bottle Cap Tightener Model-TruCap

Tightener Features:

• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
• Heavy duty linear carriage system for height adjustability.
• All shafts and threaded rods manufactured in 304 stainless steel.
• Heavy duty casters standard.
• No change of parts needed for a wide range of containers.
• Front covers with safety interlock switches standard.
• Top driven to insure no product spillage into drive assembly.

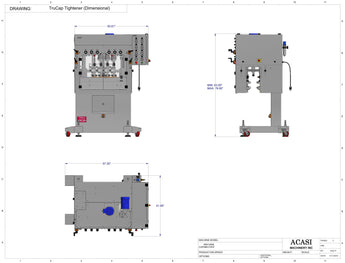

• Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment).

Capping discs features:

• 4, 6, or 8 spindle configurations available, single gear box driven
• Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
• Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
• Clutches located away from capping discs to avoid corrosion
• Heavy duty gear driven mechanism, no belts used for power transmission Adjustable speed 1/2 Hp drive motor for capping discs
• Optional second drive motor to rotate the first set of capping discs on the opposite direction
• Capping head assembly manufactured in 316L stainless steel
• 95% of manufactured parts are in stainless steel, or FDA approved polymer materials.
• Independent adjustment for front or back capping discs
• Capping disc position is adjustable while the machine is running, without opening the safety covers.
• Fully adjustable for bottle cap sizes ranging from 8 mm to 130 mm in diameter.

Bottle belts features:

• Bottle belt width adjusted via front knobs
• Bottle belt height adjusted via front knobs
• Heavy duty gear drive mechanism, no belts used for power transmission. Adjustable speed heavy duty 1/2 Hp, motor gearbox.
• Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.
• Optional double belt assembly with independent height and angle adjustment.

Electric and pneumatic requirements:

• 120 Volts, Single phase, 50/60Hz, 15 Amps.
• 5 CFM @ 80 p.s.i. (Only required with pneumatic clutches).
