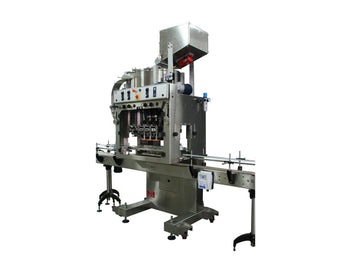

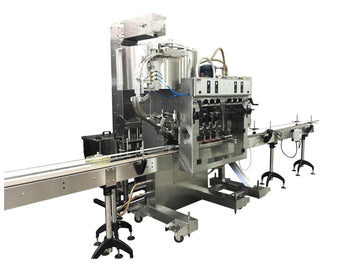

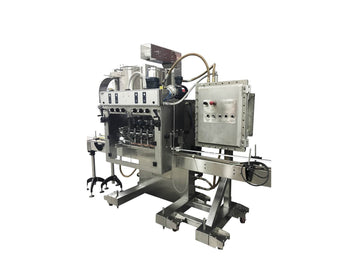

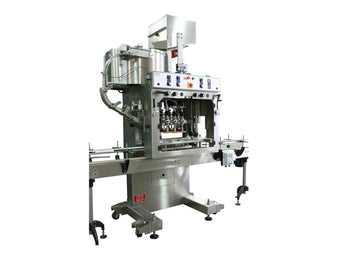

Automatic Inline Bottle Capping Machine Model TruCap-X-Cent


ACASI Inline Bottle Capper with Centrifugal cap feeder
Model TruCap-X-Cent
Starting Prices:
 4 spindle in line capper with centrifugal cap sorter:
 6 spindle in line capper with centrifugal cap sorter:
 8 spindle in line capper with centrifugal cap sorter:

Tightener Features:

  • Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
  • Heavy duty linear carriage system for height adjustability
  • All shafts and threaded rods manufactured in 304 stainless steel
  • Heavy duty casters standard
  • No change of parts needed for a wide range of containers
  • Front covers with safety interlock switches standard
  • Top driven to insure no product spillage into drive assembly
  • Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment)
Capping discs features:
  • 4, 6, or 8 spindle machine configurations available, single gear box driven
  • Independent spring loaded capping discs for better torque and misalignment forgiveness.
  •  Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
  •  Clutches located away from capping discs to avoid corrosion
  •  Heavy duty gear driven mechanism, no belts used for power transmission
  •  Adjustable speed 1/2 Hp drive motor for bottle capping discs
  •  Optional second drive motor to rotate the first set of capping discs on the opposite direction
  • Bottle capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials
  •  Independent adjustment for front or back capping discs
  • Bottle capping disc position is adjustable while the machine is running, without opening the safety covers.
  •  Fully adjustable for caps sizes ranging from 8 mm to 130 mm in diameter
Bottle belts features:
  • Bottle belt width adjusted via front knobs
  • Bottle belt height adjusted via front knobs
  • Heavy duty gear drive mechanism, no belts used for power transmission.
  • Adjustable speed heavy duty 1/2 Hp, motor gearbox
  • Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.
  • Optional double belt assembly with independent height and angle adjustment
Centrifugal type cap feeder features:
  • Construction in stainless steel.
  • 32 inch diameter feeding disc ‐ ramp assembly.
  • Cap rejecting by photoelectric sensor.
  • Cap by demand controlled by photoelectric sensor.
  • Standard 4 pieces slotted cross for easy tooling adjustment.
  • Easy changeover for caps from 10mm to 90mm in diameter.
  • Easy changeover for caps from 0.125 to 2.5 inches in height.
  • Sorter mounted on machine, no need for independent height adjustment.
  • Includes filter pressure regulator.
  • Flow controls on all air hoses.
  • Adjustable vibration system on cap hopper.
  • Force provided by 1/3 Hp DC gear motor.
  • Speed control by potentiometer.
Cap hopper features:
  • 3 Cubic feet stainless steel deposit.
  • Vibrator with independent control mounted on cap hopper.
  • Low friction limit switch for cap level sensing on centrifugal cap feeder.
Electric and pneumatic requirements:
  • 110 Volts, Single phase, 50/60Hz, 15 Amps.
  • 10 CFM @ 80 p.s.i.
