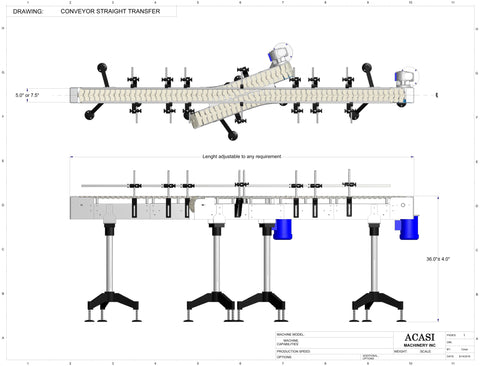

Conveyor Straight Transfer Drawings

Acasi machinery manufactures standard conveyors for all our machines as well as custom conveyors for all of our customers.

4.5 in. Standard Features:

• Includes 2 x 30 degree powered conveyor sections
• Modular design for easy expansion capabilities
• 2 x gear-motors 1/2 Hp
• 304 stainless steel construction
• Open design for easy cleaning access
• Fewer contamination points
• Acetal 4.5 inches straight running chain
• Variable speed control mounted on conveyor for independent conveyors
• Tripod bottom supports with height adjustability
• One set of tool less guide rails

• 110 Volts, 60Hz, 10 Amps.
• Not applicable for conveyors wired into a filler control panel.
