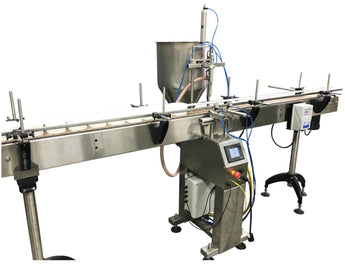

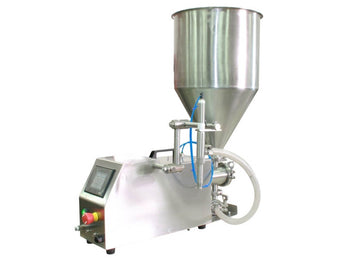

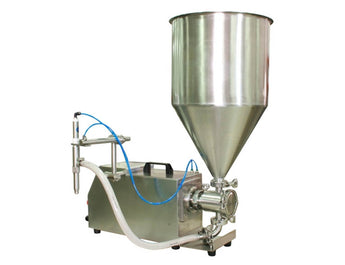

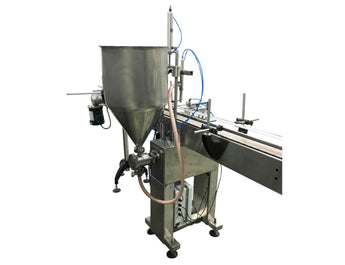

ACASI pump bottle filler model TruPump-1S, semi-automatic filling machine
Construction features:
- 304 Stainless steel heavy duty stainless steel welded frame.
- All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements.
- Special seals or hoses by order.
Control panel features:
- Omron PLC for all bottle filler machine logic functions, special modifications on programs available for special adaptations.
- Omron frequency control drive for pump speed, acceleration and deceleration.
- Front panel function controls through Omron panel.
- Front panel Emergency STOP for easy access.
Main components features:
- Sanitary pump bottle filler manufactured in 316L stainless steel, teflon or other sanitary materials.
- Toolless assembly.
- 1/2 Hp, 3phase, motor.
Standard features:
- Nozzle positioning by swivel arm.
- Will work with plastic or glass containers.
- No change of parts needed for various types of containers.
- Air regulator included.
Electric and pneumatic requirements:
- 110 Volts, 60Hz, 5 Amps.
- 2 CFM @ 80 p.s.i.
