Waterfall cap feeder and sorter, model CF4300, Assy CF4300-01-V1.0, by Acasi Machinery Inc.

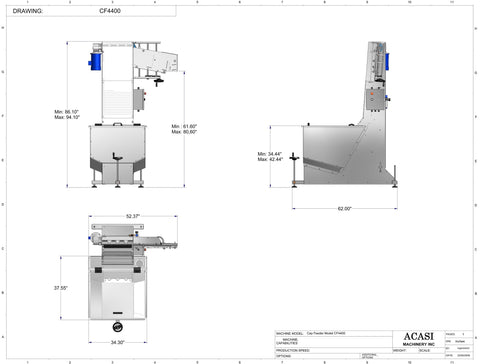

Cap Feeder Model CF4400 Drawings

ACASI Cap Feeder - Model CF4400:

Construction in stainless steel.
18 inches wide belt.
Belt spacing designed for your application, can accommodate caps from 8 mm to 110 mm in diameter.
Cap by demand controlled by photoelectric sensor.
Air shutoff valve controlled by photoelectric sensor.
Includes Filter regulator.
Knob adjustments of cap delivery system from 8mm to 110mm.
Inclination range from 0 to 5 degrees.
Complete height adjustment by structure 1 inch bolts and/or cap delivery system.
10 cubic foot cap hopper.
Force provided by DC gear motor.
Speed control by potentiometer.

+ Quick View

Cap Feeder Model CF4400 Drawings

ACASI Cap Feeder - Model CF4400: Construction in stainless steel. 18 inches wide belt. Belt...

View full product details →

Cap Feeder Model CF4400 Parts

HOPPER & ELEVATION TUNNEL

ELEVATION SYSTEM & ELECTRICAL PANEL

+ Quick View

Cap Feeder Model CF4400 Videos

ACASI Cap Feeder - Model CF4400:

Construction in stainless steel.
18 inches wide belt.
Belt spacing designed for your application, can accommodate caps from 8 mm to 110 mm in diameter.
Cap by demand controlled by photoelectric sensor.
Air shutoff valve controlled by photoelectric sensor.
Includes Filter regulator.
Knob adjustments of cap delivery system from 8mm to 110mm.
Inclination range from 0 to 5 degrees.
Complete height adjustment by structure 1 inch bolts and/or cap delivery system.
10 cubic foot cap hopper.
Force provided by DC gear motor.
Speed control by potentiometer.

+ Quick View

Waterfall cap feeder and sorter, model CF4400, Assy CF4400 (Elevation Systems & Electrical Panel), by Acasi Machinery Inc.

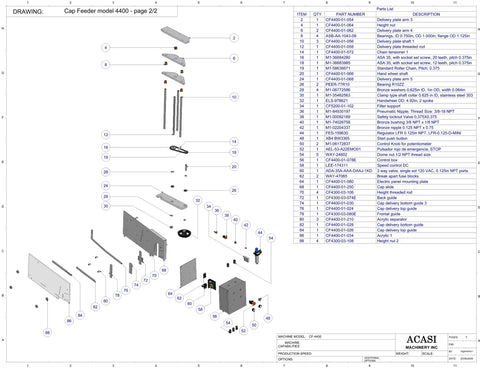

Cap Feeder Model CF4400 | Elevation System & Electrical Panel

HOPPER & ELEVATION TUNNEL

ELEVATION SYSTEM & ELECTRICAL PANEL

Item	Part No.	Part Name
2	CF4400-01-054	Delivery plate arm 3
4	CF4400-01-064	Height nut
6	CF4400-01-062	Delivery plate arm 4
8	ASB-AA-1043-09	Bearings, ID 0.750in, OD 1.000in, flange OD 1.125in
10	CF4400-01-056	Delivery plate shaft 1
12	CF4400-01-058	Delivery plate threaded rod
14	CF4400-01-072	Chain tensioner 1
16	M1-36684280	ASA 35, with socket set screw, 20 teeth, pitch 0.375in

Item	Part No.	Part Name
18	M1-36683985	ASA 35, with socket set screw, 12 teeth, pitch 0.375in
19	M1-58636671	Standard Roller Chain, Pitch: 0.375
20	CF4400-01-066	Hand wheel shaft
24	CF4400-01-068	Delivery plate arm 5
26	PEER-77R10	Bearing R10ZZ
28	M1-06772586	Bronze washers 0,625in ID, 1in OD, width 0.064in
30	M1-35462563	Clamp type shaft collar 0.625 in ID, stainless steel 303
32	ELS-978621	Handwheel OD: 4.92in, 2 spoke

Item	Part No.	Part Name
34	CF5200-01-102	Filter support
36	M1-84930197	Pneumatic Nipple; Thread Size: 3/8-18 NPT
38	M1-00092189	Safety lockout Valve 0,375X0,375
40	M1-74026758	Bronze bushing 3/8 NPT x 1/8 NPT
42	M1-02204337	Bronze nipple 0.125 NPT x 0.75
44	FES-159630	Regulator LFR 0.125in NPT, LFR-0.125-D-MINI
48	XB4 BW3365	Start push button

Item	Part No.	Part Name
50	M1-06172837	Control Knob for potentiometer
52	AEL-53-A22EMO01	Pulsador rojo de emergencia, STOP
54	WAY-24602	Dome nut 1/2 NPT thread size
56	CF4400-01-078E	Control box
58	LEE-174311	Speed control DC
60	ADA-35A-AAA-DAAJ-1KD	3 way valve, single sol 120 VAC, 0.125in NPT ports
62	WAY-47065	Break apart fuse blocks

Item	Part No.	Part Name
64	CF4400-01-080	Electric panel mounting plate
68	CF4400-01-250	Cap slide
70	CF4300-03-106	Height threaded rod
72	CF4300-03-074E	Back guide
74	CF4400-01-030	Cap delivery bottom guide 3
76	CF4400-01-024	Cap delivery top guide
78	CF4300-03-080E	Frontal guide
80	CF4400-01-210	Acrylic separator
82	CF4400-01-028	Cap delivery bottom guide
84	CF4400-01-026	Cap delivery top guide
86	CF4400-01-034	Acrylic 1
88	CF4300-03-108	Height nut 2

+ Quick View

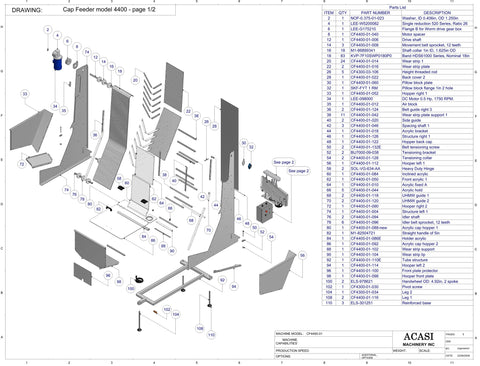

Cap Feeder Model CF4400 | Hopper & Elevation Tunnel

HOPPER & ELEVATION TUNNEL

ELEVATION SYSTEM & ELECTRICAL PANEL

Item	Part No.	Part Name
2	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
4	LEE-W5200082	Single reduction 520 Series, Ratio 26
6	LEE-G175210	Flange B for Worm drive gear box
8	CF4400-01-040	Motor spacer
12	CF4400-01-006	Drive shaft
14	CF4400-01-008	Movement belt sprocket, 12 teeth
16	M1-86899341	Shaft collar 1in ID, 1.625in OD

Item	Part No.	Part Name
18	KVP-7F10SWP0180P0	Band HDS61000 Series, Nominal 18in
20	CF4400-01-014	Wear strip 1
22	CF4400-01-016	Wear strip plate
26	CF4300-03-106	Height threaded rod
28	CF4400-01-022	Back cover 2
30	CF4400-01-060	Pillow block plate
32	SKF-FYT 1 RM	Pillow block flange 1in 2 hole
33	CF4400-01-052	Hopper right 1

Item	Part No.	Part Name
34	LEE-098000	DC Motor 0.5 Hp, 1750 RPM.
35	CF4400-01-012	Air block
36	CF4400-01-124	Belt guide right 3
38	CF4400-01-042	Wear strip plate support 1
40	CF4400-01-020	Side guide
42	CF4400-01-046	Spacing shaft 1
44	CF4400-01-018	Acrylic bracket
46	CF4400-01-126	Structure right 1
48	CF4400-01-122	Hopper back cap

Item	Part No.	Part Name
50	CF4400-01-132E	Belt tensioning screw
52	BU7000-09-038	Tensioning bracket
54	CF4400-01-128	Tensioning collar
56	CF4400-01-112	Hooper left 1
58	SOL-VG-634-AA	Heavy Duty Hinge
60	CF4400-01-084	Inclined acrylic
62	CF4400-01-050	Front acrylic 1
64	CF4400-01-010	Acrylic fixed A
66	CF4400-01-044	Acrylic hold

Item	Part No.	Part Name
68	CF4400-01-118	UHMW guide 1
70	CF4400-01-120	UHMW guide 2
72	CF4400-01-090	Hooper right 2
74	CF4400-01-004	Structure left 1
76	CF4400-01-094	Idler shaft
78	CF4400-01-096	Idler belt sprocket, 12 teeth
80	CF4400-01-088-new	Acrylic cap hopper 1
82	M1-82504721	Straight handle of 5in
84	CF4400-01-086E	Holder acrylic
86	CF4400-01-092	Acrylic cap hopper 2

Item	Part No.	Part Name
88	CF4400-01-102	Wear strip support
90	CF4400-01-104	Wear strip lip
92	CF4400-01-110E	Tube structure
94	CF4400-01-114	Hooper left 2
96	CF4400-01-100	Front plate protector
98	CF4400-01-098	Hooper front plate
100	ELS-978621	Handwheel OD: 4.92in, 2 spoke
102	CF4300-01-030	Pivot screw
104	CF4300-01-034	Leg 2
108	CF4400-01-116	Leg 1
110	ELS-301251	Reinforced base

+ Quick View

Single head chuck bottle cappe Model PC1-4400 dimensions, by Acasi Machinery, Inc.

Chuck bottle capper model PC1 Drawings

ACASI rotary multi head chuck capper

Model PC1-8000

Capper features:

Machine designed to place plastic or metal caps on a wide range of containers – enclosures.
Price includes one set of change parts (star wheel, outer guide, cap delivery and chuck).
Acasi magnetic clutch capping head model MJ90 (Magnetic with Jaws), visual torque setting for ease of adjustment, manufactured in 304 stainless steel.
Pick and place mechanism in stainless steel. Cap is delivered to the chuck, and then the chuck comes down holding the cap (This prevents cross- threading).
Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
Center CAM manufactured in special cam rated casting.
Cap delivery to transfer plate only when bottles are present.
Price includes one set of chance parts (In feed screw and star wheels).
Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
3 Hp Ac motor with frequency drive speed control.
Stainless steel electric enclosure.
Heavy duty 304 Stainless steel welded frame.
Stainless steel enclosure with polycarbonate windows and safety switches.
All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel.
Gear driven transmission machine to avoid timing loss.
Complete height adjustment with bottle setting guide for quick changeovers.
Tool-less changeovers for star wheels and most change parts.
All electric, pneaumatic and mechanical components are off the shelf and commercially available.
For round glass and PVC containers the machine is equipped with an anti-rotation belt device actuated pneumatically.
For PET the center star wheel comes standard with anti-rotation teeth for each capping head.
For odd shape container, rectangular, oblong, and others, star wheel design is used to prevent rotation of the containers.

Cap chute features:

All contact parts in stainless steel.
Designed and tested for each cap to avoid jamming.
Includes cap demand sensor to start and stop the cap feeder.
Quick change over, since parts are pin guided so no tweaking is required.

Electric and pneumatic requirements:

Speed control by potentiometer 220 Volts, 60Hz, 10 Amps.
5 CFM @ 80 psi.

+ Quick View

Single head chuck capper machine with waterfall type cap feeder, model PC1-JAW-Wfall, by Acasi Machinery Inc., front view

Chuck bottle capper model PC1-JAW-WFall

ACASI single head chuck capper with waterfall type cap feeder
Model PC1-JAW-WFall

Capper features:

Machine designed to place plastic or metal caps on a wide range of containers – enclosures.
Price includes one set of change parts (star wheel, outer guide, cap delivery and chuck).
Acasi magnetic clutch capping head model MJ90 (Magnetic with Jaws), visual torque setting for ease of adjustment, manufactured in 304 stainless steel.
Pick and place mechanism in stainless steel. Cap is delivered to the chuck, and then the chuck comes down holding the cap (This prevents cross- threading).
Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
Maximum bottle diameter with 12 pocket star wheel: 4.25 in.
Maximum bottle diameter with 6 pocket star wheel: 8.00 in.
Center CAM manufactured in special cam rated plastic material.
Automatic start and stop with presence or absence of containers.
12 or 6 pocket center star wheel for container handling (Depends on the size of the container).
Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
2 Hp Ac motor with frequency drive speed control.
Stainless steel electric enclosure.
Heavy duty 304 Stainless steel welded frame.
Stainless steel enclosure with polycarbonate windows and safety switches.
All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel.
Gear driven transmission machine to avoid timing loss.
Complete height adjustment with bottle setting guide for quick changeovers.
Tool-less changeovers for star wheels and most change parts.

Cap chute features:

All contact parts in stainless steel.
Designed and tested for each cap to avoid jamming.
Includes cap demand sensor to start and stop the cap feeder.
Quick change over, since parts are pin guided so no tweaking is required.

Waterfall feeder features:

Construction in stainless steel.
18 inches wide belt.
Cap feeder is adjustable for caps from 8mm to 110mm in diameter, via quick adjust knobs.
Cap feed on demand, controlled by photoelectric sensor.
Air shutoff valve controlled by photoelectric sensor.
Includes air regulator and filter.
Feeder inclination adjustable from 0 to 5 degrees.
Complete height adjustment by structure 1 inch bolts and/or cap delivery system.
10 cubic foot cap hopper.
Drive provided by DC gear motor.
Independent speed control (potentiometer).

Electric and pneumatic requirements:

Speed control by potentiometer 220 Volts, 60Hz, 10 Amps.
5 CFM @ 80 psi.

+ Quick View

Single head chuck capper with waterfall type cap feeder, model PC1-JAW-WFALL dimensions, by Acasi Machinery Inc.

Chuck bottle capper model PC1-JAW-WFall Drawings

ACASI single head chuck capper with waterfall type cap feeder
Model PC1-JAW-WFall

Capper features:

Machine designed to place plastic or metal caps on a wide range of containers – enclosures.
Price includes one set of change parts (star wheel, outer guide, cap delivery and chuck).
Acasi magnetic clutch capping head model MJ90 (Magnetic with Jaws), visual torque setting for ease of adjustment, manufactured in 304 stainless steel.
Pick and place mechanism in stainless steel. Cap is delivered to the chuck, and then the chuck comes down holding the cap (This prevents cross- threading).
Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
Maximum bottle diameter with 12 pocket star wheel: 4.25 in.
Maximum bottle diameter with 6 pocket star wheel: 8.00 in.
Center CAM manufactured in special cam rated plastic material.
Automatic start and stop with presence or absence of containers.
12 or 6 pocket center star wheel for container handling (Depends on the size of the container).
Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
2 Hp Ac motor with frequency drive speed control.
Stainless steel electric enclosure.
Heavy duty 304 Stainless steel welded frame.
Stainless steel enclosure with polycarbonate windows and safety switches.
All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel.
Gear driven transmission machine to avoid timing loss.
Complete height adjustment with bottle setting guide for quick changeovers.
Tool-less changeovers for star wheels and most change parts.

Cap chute features:

All contact parts in stainless steel.
Designed and tested for each cap to avoid jamming.
Includes cap demand sensor to start and stop the cap feeder.
Quick change over, since parts are pin guided so no tweaking is required.

Waterfall feeder features:

Construction in stainless steel.
18 inches wide belt.
Cap feeder is adjustable for caps from 8mm to 110mm in diameter, via quick adjust knobs.
Cap feed on demand, controlled by photoelectric sensor.
Air shutoff valve controlled by photoelectric sensor.
Includes air regulator and filter.
Feeder inclination adjustable from 0 to 5 degrees.
Complete height adjustment by structure 1 inch bolts and/or cap delivery system.
10 cubic foot cap hopper.
Drive provided by DC gear motor.
Independent speed control (potentiometer).
