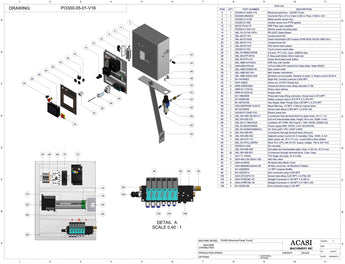

Piston Bottle Filler PI3300 | Electric Panel Touch
$ 0.00 USD
/
FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH
ELECTRIC PANEL STANDARD | TANKS | ACCESORIES | PISTONS
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | GI3300-01-030E-V16 | Eectric panel box - GI3300 Touch |  |
| 4 | MCMAS-9600K23 |
Grommet Fits 0.313 in Diam 0.093 in Thick, 0.500 in OD |
|
| 6 | GI3300-21-012E |
Metal auxiliar sensor box |
|
| 8 | GI3300-21-008 | Auxiliar sensor box PTFE gasket | |
| 10 | KEYE-FS-N11P | PNP Fiber optic amplifier | |
| 12 | PI3300-01-042-V16 | Electric panel mounting plate | |
| 14 | AEL-53-CP1W-CIF01 | RS-232C Option Board | |
| 16 | AEL-60-D7-X01 | Contact block NC | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 18 | AEL-60-D7-N3G | Green iluminated LED module (PWR MOD W/LED GRN 24V) | |
| 20 | AEL-60-D7-X10 | Contact block NO | |
| 22 | AEL-60-D7-ALP | Pilot device latch plastic | |
| 24 | GI3300-01-032 | Touch screen panel plate | |
| 26 | AEL-53-NB5QTW00B | 5.6 inch, TFT LCD, Color, 320/234 dots | |
| 28 | AEL-60-D7P-MT44 | E Stop push Button 40mm twist red | |
| 30 | AEL-60-D7P-LF3 | Green iluminated push buttom | |
| 32 | AEL-ABB-OHYS2AJ | N3R Disc with handle | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 34 | AMA-B0047534J8 |
15 Foot DB9 9 Pin Serial Port Cable Male /Male RS232 |
|
| 36 | AEL-ABB-OXS6X180 |
Main switch shaft |
|
| 38 | AEL-ABB-S2C-DH | Mini breaker mechanism | |
| 40 | AEL-ABB-S202U-K25 | Miniature circuit breaker, Number of poles: 2, Rated current 25.00 A | |
| 42 | M1-04784823 | Rigid IMC Counduit Locknuts 0.500 NPT | |
| 44 | WAY-24602 | Dome nut 1/2 NPT thread size | |
| 46 | MAR-SSD53SSH | Closed-end blind rivets, Body dimaeter 0.156 | |
| 48 | DBR-K3-1735-52 | Rotary draw latches | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 50 | DBR-K3-0334-52 | Keeper plate | |
| 52 | M1-79802609 |
Pneumatic hose fitting connector, thread size 0.375 MPT |
|
| 54 | M1-00092189 | Safety Lockout valve 0.375 FPT x 0.375 FPT | |
| 56 | M1-09724709 | Hex Nipple, Male Thread Size 0.50 NPT x 0.375 NPT | |
| 58 | ADA-MGFR400-15-M-W | Mead filter/reg, 1/2 NPT, 5 Micron manual drain | |
| 60 | M1-62378559 | Swivel male elbow 0.500 NPT x 0.375in OD | |
| 62 | GI3300-01-044E-V16 | Electric panel arm | |
| 64 | AEL-WA-282128-281417 | 2-conductor fuse terminal block for glass fuses 1/4 x 1 1/4 | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 66 | AEL-WA-282-312 | End and intermediate plate. Height: 46.4 mm, Width: 4 mm | |
| 68 | AEL-EO-3-1800-023A | Contactor 3P FVNR 18A Frame C 1NO 190/50, 220/60 Coil | |
| 70 | AEL-53-S8VKC06024 |
Power supply 60W, 24VDC 2.5A 100-240VAC |
|
| 72 | AEL-53-3G3MX2AB004V1 | AC Drive, 240V 1PH, 1/2HP 0.4KW | |
| 74 | AEL-WA-280-907 | 2-conductor through terminal block (Ground) | |
| 76 | AEL-WA-280-402 | Adjacent jumper current 24 A insulated, Gray, Width: 5 mm | |
| 78 | AEL-WA-210-112 | Steel carrier rail, 35 x 7.5 mm, 1mm/0.039 in thick siotted | |
| 80 | AEL-53-CP1LM30DRA | Micro PLC CPU with 30 I/O, Inputs:18, Outputs: 12 relay | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 82 | GI3300-01-043 | Din rail plate | |
| 84 | AEL-WA-280-308 | End plate and intermediate plate, Gray, H 28mm, W 2.5 mm | |
| 86 | AEL-WA-280-901 |
2-conductor through terminal block, Color: Gray |
|
| 88 | AUT-T1-1022G | Thin finger duct grey 1in x 2.25in | |
| 90 | ADA-46A-L00-JDAA-1GD | 46A Mac valve | |
| 92 | ADA-M-46002 | 46 Series Mac Blank Cover | |
| 94 | ADA-EBM46A-00AAA-08 | 46 Mac circuit bar, 46 Manifold 8 Station | |
| 96 | M1-42008854 | 1/4 NPT sintered Muffler | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 98 | M1-02203214 | End connection plug 0.250 NPT | |
| 100 | ADA-CPLS375-1/4 | Swivel male elbow 0.25 NPT x 0.375in OD | |
| 102 | ADA-PC68CBC-42 | Straight Connector 0.125 NPT x 0.250 in | |
| 104 | ADA-CPBR156-1/8 | Straight Connecto 0.125 NPT x 0.156 in OD | |
| 106 | M1-02203198 | End connection plug 0.125 NPT |
|
