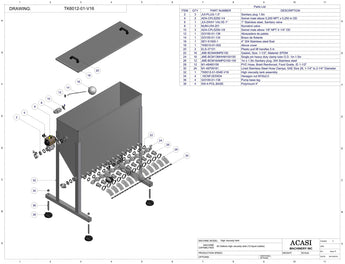

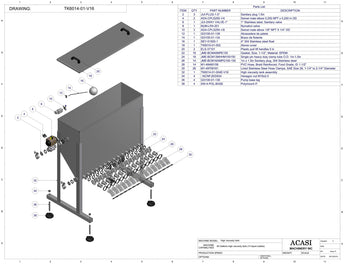

Option B: 60 gallons high viscosity tank

• Elevated 60 Gallon 304 Stainless Steel tank for the reception of product to be filled, includes top cover and 3 sanitary 1 ½ inch standard connections for product feeding or cleaning and 10, 12 or 14 sanitary connections to feed each piston. This tank is recommended for high viscosity products.

Item	Part No.	Part Name	Price
2	JUI-PLUG-1.5"	Sanitary plug 1.5 in
4	ADA-CPLS250-1/4	Swivel male elbow 0.250 NPT x 0.250 in OD
6	JUI-2WAY VALVE-1"	1" Stainless steel, sanitary valve
8	NUM-LR4-201	Numatrol valve
10	ADA-CPLS250-1/8	Swivel male elbow 1/8" NPT x 1/4" OD
12	GI3100-01-136	Clamp arm float
14	GI3100-01-134	Arm float
16	SEY-51500-1	4" 304 Stainless steel float
18	TK6010-01-002	Above cover
20	ELS-37101	Plastic pull lift handles 5 in
22	JME-BCM40MPE150	Gasket, Size: 1-1/2" Material: EPDM
24	JME-BCM13MHHM100150	Single pin heavy duty clamp tube O.D. 1in-1.5in
26	JME-BCM16AMPG100-150	1in x 1.5in sanitary plug 304 stainless steel
28	M1-48460158	PVC Hose, braid reinforced, food grade, ID 1-1/2"
30	M1-49709181	Lined stainless steel hose clamps, SAE size 28, 1-1/4" to 2-1/4" diameter
32	TK6014-01-004E-V16	High viscosity tank assembly
34	.16CNFJS/D934	Hexagon nut M16x2.0
36	GI3100-01-138	Pump base leg
38	SW-4-POL-BASE	Polymount 4"
