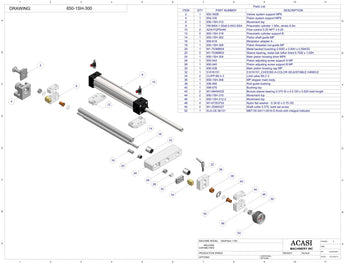

Piston Filler- Model MiniPiston 1-SH | Piston System

Request a Quote

CHASSIS SYSTEM | PISTONS SYSTEM | NOZZLE SYSTEM | PISTONS

Item	Part No.	Part Name	Price
2	652-362E	Valves system support MP8
4	652-330	Piston system support MP8
6	650-1SH-312	Movement top
8	FM-MS4-1.50x8.5-KK3-SSA	Pneumatic cylinder 1.50in, stroke 8.5 in
10	ADA-FQPS44K	Flow control 0.25 NPT x 0.25
12	650-1SH-318	Pneumatic cylinder support B
14	650-1SH-302	Piston shaft guide MP
16	650-618	Minipiston adapter A

Item	Part No.	Part Name	Price
18	650-1SH-308	Piston threaded rod guide MP
20	M1-75368654	Metal backed busching 0.50IDx0.50Hx 0.594OD
22	M1-75368803	Sleeve bearing, metal bak teflon lined 0.75IDx1H
24	650-1SH-304	Main piston housing drive MP8
26	650-042	Piston adjusting screw support A MP
28	650-040	Piston adjusting screw support B MP
30	650-038	Main piston housing cap MP
32	5101K151	5101K151 chose a color adjusting handle

Item	Part No.	Part Name	Price
34	CLIPP-MLV-3	Limit valve MLV-3
36	650-1SH-306	MP stopper main body
38	556-060	Rod guide bushing
40	556-070	Bushing top
42	M1-06454532	Flange bronze sleeve bearing 0.375IDx 0.5OD
44	650-1SH-310	Movement top
46	650-1SH-312-2	Movement top
48	M1-67353722	Nylon flat washer-0.39ID x 0.75OD

Item	Part No.	Part Name	Price
50	M1-35465327	Shaft collar 0.375 solid set screw
52	ELS-CE.56131	Knob with Gravity indicator
