Straight Conveyors 13 feet

Request a Quote

6 feet | 10 feet | 13 feet | 16 feet | 20 feet

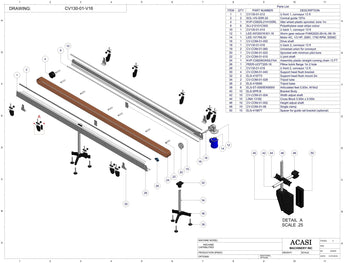

Item	Part No.	Part Name	Price
1	CV130-01-012	U front 1, conveyor 13 ft
2	SOL-VG-SSR-20	Conical guide 157in
4	KVP-C0820L21H100RL	Idler wheel plastic sprocket, bore 1in
8	SLI-210101C500	Polyethylene wear strips colour
10	CV130-01-014	U back 1, conveyor 13 ft
12	LEE-WF20016301.16	Worm gear reducer FHMQ520-26-HL-56-16
14	LEE-101769.00	Motor AC, 1/3 HP, 208V, 1750 RPM, SS56C
16	CV-COM-01-050	Drive shaft

Item	Part No.	Part Name	Price
18	CV130-01-016	U back 2, conveyor 13ft
19	CV-COM-01-060	Universal union for conveyor
20	CV-COM-01-022	Sprocket with minimun pilot bore
22	CV-COM-01-010	U joint shaft
24	KVP-C0820K0450LFAA	Assembly plastic straight running chain 13 FT
26	PEER-UCFT205-16	Pillow bolck flange 1in 2 hole
28	CV130-01-018	U front 2, conveyor 13 ft
30	CV-COM-01-040	Support head flush bracket

Item	Part No.	Part Name	Price
32	ELS-419773	Support head flush mount 2in
34	CV-COM-01-028	Tripod tube
36	ELS-419595	Tripod base
38	ELS-ST-0000EN569/0	Articulated feet 5,93in, M16x2
40	ELS-SPR.B	Bracket Body
42	CV-COM-01-004	Width adjust shaft
44	LINA-13182	Cross Block 0.50in x 0.50in
46	CV-COM-01-002	Height adjust shaft
48	CV-COM-01-08	Single clamp
50	ELS-419677	Spacer for guide rail bracket (optional)
