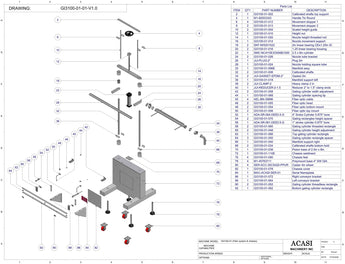

Overflow Bottle Filler GI3100 | Filler & Chassis System

Request a Quote

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL

PUMP AND TANK

Item	Part No.	Part Name	Price
2	GI3100-01-002	Calibrated shafts top support
4	ELS-77511	Handle 7in Round
6	GI3100-01-012	Movement stopper 1
8	GI3100-01-013	Movement stopper 2
10	GI3100-01-004	Scaled height guide
12	GI3100-01-010	Height nut
14	GI3100-01-020	Nozzle height threaded rod
16	GI3100-01-014	Nozzle movement support

Item	Part No.	Part Name	Price
18	SKF-M/5201522	2in linear bearing ODx1.25in ID
20	GI3100-01-016	1.25 linear bearing housing
22	SMC-NCAY5E3O006B1000	2.5 x 8in cylinder
24	GI3100-01-026	Nozzle tube bracket
26	JUI-PLUG-2"	Plug 2in
28	GI3100-01-024	Nozzle holding square tube
30	GI3100-01-096E	Manifold assy
32	SKF-LJXR 20X36 ESSC2	Calibrated shafts

Item	Part No.	Part Name	Price
34	JUI-GASKET-EPDM-2"	Gasket 2in
36	GI3100-01-018	Manifold support left
38	JUI-CLAMP-2	Heavy clamp 2 in
40	JUI-REDUCER-2-1.5	Reducer 2" to 1.5" clamp ends
42	GI3100-01-058	Gating cylinder width adjustment
44	GI3100-01-068	Gating cylinder spacing tip
45	AEL-BN-39996	Fiber optic cable

Item	Part No.	Part Name	Price
46	GI3100-01-055	Fiber optic head
48	GI3100-01-054	Fiber optic bottom mount
50	GI3100-01-056	Fiber optic top mount
52	ADA-SR-064-DEE0.5-G	4" Stroke Cylinder 0.875" bore
54	GI3100-01-070	Gating rectangles height spacer
56	ADA-SR-061-DEE0.5-G	1" Stroke Cylinder 0.875" bore
58	GI3100-01-060	Gating cylinder threaded rectangle
60	GI3100-01-048	Gating cylinder height adjustment

Item	Part No.	Part Name	Price
62	GI3100-01-066	Top gating cylinder rectangle
64	GI3100-01-050	Gating cylinder rectangle spacer
66	GI3100-01-040	Manifold support right
68	GI3100-01-034	Calibrated shafts bottom hold
70	GI3100-01-038	Piston base of 2.5in x 8in.
72	GI3300-01-110E	Chassis weldment
76	GI3100-01-090	Chassis feet

Item	Part No.	Part Name	Price
78	M1-45763711	Polymount base 4" SW QIA
80	SER-SCC-30CS420-PPUR	Caster 4in wheel
82	GI3100-01-078	Chassis cover
84	MAC-ACASI-SER-01	Serial Nameplate
86	GI3100-01-072	Right conveyor bracket
88	GI3100-01-064	Left conveyor bracket
90	GI3100-01-052	Gating cylinder threadless rectangle
92	GI3100-01-062	Bottom gating cylinder rectangle
