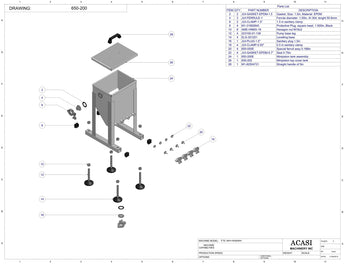

Miniature Piston Filler- Model MiniPiston-4 | 5 GL Tank


FILLER SYSTEM & CHASSIS | ELECTRIC PANEL

5GL TANK | PISTONS | NOZZLES

Item Part No. Part name Price
2 JUI-GASKET-EPDM-1.5 Gasket, Size: 1.5in, Material: EPDM
4 JUI-FERRULE-1 Ferrule diameter: 1.00in, AI 304, lenght 50.8mm
6 JUI-CLAMP-1.5" 1.5 in sanitary clamp
8 M1-31992845 Protective Plug, square head, 1.500in, Black
10 AME-HNMX-16 Hexagon nut M16x2
12 GI3100-01-138 Pump base leg
14 ELS-301251 Levelling base
Item Part No. Part name Price
16 JUI-PLUG-1.5" Sanitary plug 1.5in
18 JUI-CLAMP-0.5 0.5 in sanitary clamp
20 650-050E Special ferrull assy 0.188in
22 JUI-GASKET-EPDM-0.75" Seal 0.75in
24 650-200E Minipiston tank assembly
26 650-202 Minipiston top cover tank
28 M1-82504721 Straight handle of 5in
