Miniature Piston Filler- Model MiniPiston-4 | 1/2 Inches Piston

$ 562.00

Request a Quote

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL

5GL TANK | PISTONS | NOZZLES | VALVES

___________________________________________________

1/2 Inches Piston | 3/4 Inches Piston | 0.895 Inches Piston | 1 Inch Piston | 1.5 Inches Piston (U-cup version) | 1.5 Inches Piston (O-ring version)

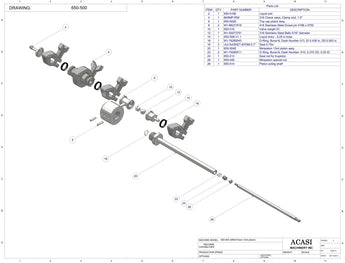

Item	Part No.	Part name	Price
2	650-516E	Liquid exit
4	B45MP-R50	316 Check valve, clamp end, 1.5"
6	650-502E	Top cap piston assy
8	M1-88231816	416 Stainless Steel Dowel pin 0188 x 0750
10	650-510	Valve weight 01
12	M1-00073791	316 Stainless steel ball 5/16" diameter
14	650-508	Liquid entry - 0.25 in hose

Item	Part No.	Part name	Price
16	M1-79285045	O-Ring, Buna-N, Dash Number 013, ID 0.438 in, OD 0.563 in
18	JUI-GASKET-EPDM-0.75	Seal 0.75in
20	650-504E	Minipiston 1/2 inches piston assy
22	M1-79285011	O-Ring, Buna-N, Dash Number: 010
24	650-512	Seal rod
26	650-046	Minipiston special nut
28	650-514	Piston acting shaft
