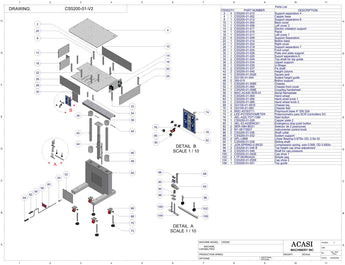

CHASSIS & MAIN HOLDER SYSTEM | BOTTLE BELTS SYSTEM | CAPPING DISC SYSTEM
| Item | Part No. | Part name | Price |
| 2 | CS5200-01-010 | Support separators 4 |  |
| 4 | CS5200-01-002 | Capper base | |
| 8 | CS5200-01-012 | Support separators 8 | |
| 10 | CS5200-01-004 | Back cover | |
| 12 | CS5200-01-006 | Left cover 2 | |
| 14 | CS5200-01-017 | Electric intalation support | |
| 16 | CS5200-01-016 | Panel | |
| 18 | CS5200-01-011 | Left cover 1 | |
| 20 | CS5200-01-008 | Support Separators | |
| 22 | CS5200-01-014 | Botton base | |
| 24 | CS5200-01-022 | Right cover | |
| 26 | CS5200-01-018 | Support separators 7 | |
| 28 | CS5200-01-024 | Front cover | |
| 30 | CS5200-01-026 | Plate and plate support | |
| 32 | CS5200-01-020 | Suport separators 6 | |
| 34 | CS5200-01-044 | Top shaft for top guide | |
| 36 | CS5200-01-034 | Uppert support | |
| 38 | CS5200-01-030 | U-Shape | |
| 40 | CS5200-01-037 | Fix shaft | |
| 42 | CS5200-01-040 | Height colums | |
| 44 | CS5200-01-052E | Square jack | |
| 46 | GI3100-01-004 | Scaled height guide | |
| 48 | CS5200-01-054 | Botton support | |
| 50 | CS5200-01-056E | Chasis |
|
| 52 | CS5200-01-069 | Chassis front cover | |
| 54 | CS5200-01-058E | Coupling handwheel-gato de graduacion para altura | |
| 58 | MAC-ACASI-SER-01 | Serial Nameplate | |
| 60 | CS5200-01-064 | Hand wheel | |
| 62 | CS5200-01-066 | Hand whell knob 1 | |
| 64 | CS5200-01-068 | Hand wheel knob 2 | |
| 68 | GI3100-01-091E-V1.1 | Chassis leg | |
| 70 | GI3100-01-090 | Chassis feet | |
| 72 | M1-45763711 | Polymount base 4'' SW QIA | |
| 74 | LEE-POTENTIOMETER | Potentiomenter 10 OHM | |
| 76 | AEL-A22LTGT110M | Start button | |
| 78 | CS5200-01-028 | Capper plate 2 | |
| 80 | AEL-53-A22EMO01 | Pulsador rojo de emergencia, STOP | |
| 82 | AEL-53-A22S2M10 | Switch 2 position | |
| 84 | M1-06172837 | Instrumental control knob | |
| 86 | CS5200-01-036 | Shaft collar | |
| 88 | CS5200-01-032 | System support | |
| 90 | APL-LBB8 | Linear Bearing 0.875in OD, 0.5in ID | |
| 92 | CS5200-01-038 | Sliding shaft | |
| 94 | JON-SPRING-0.85OD | Compression spring, w0.068in, OD0.850 | |
| 96 | CS5200-01-046 | Top height cap shoe adjustment | |
| 98 | CS5200-01-048 | Shaft for cap pressure | |
| 100 | CS5200-01-042E | Cap shoe 1 | |
| 102 | CV-COM-01-08 | Single Clamp | |
| 104 | CS5200-01-050E | Cap shoe 2 | |
| 106 | CS5200-01-051 | Top guide | |
