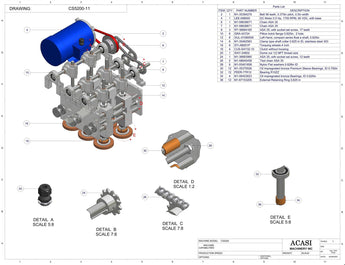

Inline capping machine for a wide range of containers and caps, model CS5200, Assy CS5200-11, by Acasi Machinery Inc.

Inline Bottle Capping Machine Model CS5200 | Capping Disc System (CS5200-11)

Item	Part No.	Part Name
2	M1-35394279	Belt 56 teeth, 0.375in pitch, 0.5in width
4	LEE-098000	DC Motor 0.5 Hp, 1750 RPM, 90 VDC, with base
6	M1-58636671	Chain ASA 35
7	M1-58636671	Chain ASA 35
8	M1-36684165	ASA 35, with socket set screw, 17 teeth
10	GRA-4X724	Pillow bolck flange 0.625in, 2 hole
12	GUL-01090000	Left Hand, compact series float a shaft, 0.625in
14	M1-35462563	Clamp type shaft collar 0.625 in ID, stainless steel 303
16	AMU-4.07OD x 1.97ID	Torquing wheels 4 inch

Item	Part No.	Part Name
18	CUS-SAY32-10	Clutch without housing
20	WAY-24602	Dome nut 1/2 NPT thread size
24	M1-36683985	ASA 35, with socket set screw, 12 teeth
26	M1-58645458	Tied chain ASA 35
28	M1-05401658	Nylon Flat washers 0.628in ID
30	M1-35375526	Oil impregnated bronze Premium Sleeve Bearings, ID 0.750in
32	PEER-77R10	Bearing R10ZZ
34	M1-06453823	Oil impregnated bronze Bearings, ID 0.625in
36	M1-67153205	External Retaining Ring 0,625 in

Inline Bottle Capping Machine Model CS5200 | Capping Disc System (CS5200-11)
