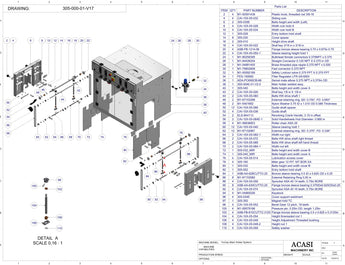

Inline Bottle Cap Tightener Model-TruCap | Main Holder System (305-000-01-V17)

Request a Quote

CHASSIS SYSTEM | MAIN HOLDER SYSTEM

ELECTRIC PANEL SYSTEM | BOTTLE BELTS SYSTEM

BELTS SYSTEM GEAR BOX | CAPPING DISC GEAR BOX

CAPPING DISC SYSTEM (MECHANICAL CLUTCHES)

CAPPING DISC SYSTEM (PNEUMATIC CLUTCHES)

____________________________________________________

305-000-01-V17 | 305-000-03-V17 | 305-000-01-V21| 305-000-03-V21

Item	Part No.	Part Name	Price
2	M1-00591438	Plastic knob, threaded rod 3/8-16
4	CAI-10X-05-032	Sliding coin
6	305-030E	Belts height and width (Left)
8	CAI-10X-05-028	Width coin hold A
10	CAI-10X-05-034	Width coin hold B
12	305-028	Entry bottom hold shaft
14	305-030	Cover spacer
16	305-010	Height drive shaft

Item	Part No.	Part Name	Price
18	CAI-10X-05-022	Shaf key 3/16 x 3/16
20	ASB-FFB-1214-06	Bronze sleeve bearing 0.75 x 0.875 x 0.775in
22	CAI-10X-05-050	Sleeve bearing height hold 1
24	M1-80258395	Bulkhead female connectors 0.375 NPT x 0.375 OD
26	M1-84426204	Straight connector 0.125 NPT X 0.375 in OD
28	M1-04881405	Brass threaded pipe nipple 0.375 NPT x 0.500
30	M1-79802609	Pneumatic hose fitting connector, thread size 0.375 NPT
32	M1-00092189	Safety Lockout valve 0.375 FPT x 0.375 FPT

Item	Part No.	Part Name	Price
34	FES-159582	Filter Regulator LFR-3/8-MIDI
36	ADA-CPLS375-3/8	Swivel male elbow 0.375 NPT x 0.375in OD
38	305-004E-01-V2.0	Main holder welded assy
40	305-040	Belts height and width cover A
42	CAI-10X-05-026	Shaf key 1/8 in x 1/8 in
44	CAI-10X-05-060	Bellts HW drive shaft 1
46	M1-67153288	External retaining ring, SD: 0.750", FD: 0.693"
48	M1-5401682	Nylon washer 0.75 ID x 1.010 OD 0.066 Tickness

Item	Part No.	Part Name	Price
50	CAI-10X-05-066	Guide shaft spacer
52	CAI-10X-05-036	Guide shaft
54	ELS-944113	Revolving Crank Handle, 3.15 in offset
56	ELS-972651	Solid Handwheels Hub Diameter: 0.980 in
58	M1-58636853	Roller chain ASA 25
60	CAI-10X-05-040	Sleeve bearing hold 1
62	M1-67152967	External retaining ring, SD: 0.375", FD: 0.338"
64	CAI-10X-05-082-1	Width nut Right

Item	Part No.	Part Name	Price
66	CAI-10X-05-072	Belts HW drive shaft right thread
68	CAI-10X-05-068	Belts HW drive shaft left hand thread
70	CAI-10X-05-084-1	Width nut Left
72	305-032_MIR	Belts height and width cover B
74	305-040_MIR	Belts height and width cover A
76	CAI-10X-05-014	Lubrication access cover
78	305-190	Miter gear 12 PIT 18T BOR 3/4
80	305-032	Belts height and width cover B

Item	Part No.	Part Name	Price
82	305-052	Entry bottom hold shaft
84	ASB-AA-628CUTTO.25	Bronze sleeve bearing 0.5 x 0.625 x 0.25 in
86	M1-67153080	External Retaining Ring 0.50 in
88	CAI-10X-05-056	Sprocket ASA 40 14 teeth,0.75in BORE
90	ASB-AA-630CUTTO.25	Bronze sleeve bearing 0.375 x 0.625 x 0.25 in
92	CAI-10X-05-074	Sprocket ASA 40 16 teeth,0.75in BORE
94	M1-04965026	Keystock
96	305-034E	Cover support weldment

Item	Part No.	Part Name	Price
97	305-350	Magnet hold TC
98	CAI-10X-05-052	Miter Gear, 12 pitch,18 teeth 0.5 bore
100	M1-09579186	Presure pin, 0.25in OD, lenght 1.25in
102	ASB-FB-810CUTTO.3125	Flange bronze sleeve bearing 0.5 x 0.625 x 0.3125in
104	CAI-10X-05-054	Height threreaded rod 1
106	CAI-10X-05-049	Height adjustment threaded bushing
108	CAI-10X-05-048-2	Height nut 1
110	CAI-10X-05-058	Safety washer
