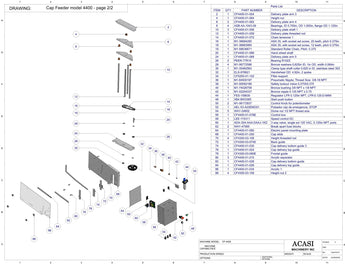

ELEVATION SYSTEM & ELECTRICAL PANEL
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 |
CF4400-01-054 |
Delivery plate arm 3 |  |
| 4 | CF4400-01-064 | Height nut | |
| 6 | CF4400-01-062 | Delivery plate arm 4 | |
| 8 | ASB-AA-1043-09 | Bearings, ID 0.750in, OD 1.000in, flange OD 1.125in | |
| 10 | CF4400-01-056 | Delivery plate shaft 1 | |
| 12 | CF4400-01-058 | Delivery plate threaded rod | |
| 14 | CF4400-01-072 | Chain tensioner 1 | |
| 16 | M1-36684280 | ASA 35, with socket set screw, 20 teeth, pitch 0.375in | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 18 | M1-36683985 | ASA 35, with socket set screw, 12 teeth, pitch 0.375in | |
| 19 | M1-58636671 | Standard Roller Chain, Pitch: 0.375 | |
| 20 | CF4400-01-066 | Hand wheel shaft | |
| 24 | CF4400-01-068 | Delivery plate arm 5 | |
| 26 | PEER-77R10 | Bearing R10ZZ | |
| 28 | M1-06772586 | Bronze washers 0,625in ID, 1in OD, width 0.064in | |
| 30 | M1-35462563 | Clamp type shaft collar 0.625 in ID, stainless steel 303 | |
| 32 | ELS-978621 | Handwheel OD: 4.92in, 2 spoke | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 34 |
CF5200-01-102 |
Filter support | |
| 36 |
M1-84930197 |
Pneumatic Nipple; Thread Size: 3/8-18 NPT | |
| 38 |
M1-00092189 |
Safety lockout Valve 0,375X0,375 | |
| 40 | M1-74026758 | Bronze bushing 3/8 NPT x 1/8 NPT | |
| 42 | M1-02204337 | Bronze nipple 0.125 NPT x 0.75 | |
| 44 | FES-159630 | Regulator LFR 0.125in NPT, LFR-0.125-D-MINI | |
| 48 | XB4 BW3365 | Start push button | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 50 |
M1-06172837 |
Control Knob for potentiometer | |
| 52 | AEL-53-A22EMO01 | Pulsador rojo de emergencia, STOP | |
| 54 | WAY-24602 | Dome nut 1/2 NPT thread size | |
| 56 | CF4400-01-078E | Control box | |
| 58 | LEE-174311 | Speed control DC | |
| 60 | ADA-35A-AAA-DAAJ-1KD | 3 way valve, single sol 120 VAC, 0.125in NPT ports | |
| 62 | WAY-47065 | Break apart fuse blocks | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 64 |
CF4400-01-080 |
Electric panel mounting plate | |
| 68 | CF4400-01-250 | Cap slide | |
| 70 | CF4300-03-106 | Height threaded rod | |
| 72 | CF4300-03-074E | Back guide | |
| 74 | CF4400-01-030 | Cap delivery bottom guide 3 | |
| 76 | CF4400-01-024 | Cap delivery top guide | |
| 78 | CF4300-03-080E | Frontal guide | |
| 80 | CF4400-01-210 | Acrylic separator | |
| 82 | CF4400-01-028 | Cap delivery bottom guide | |
| 84 | CF4400-01-026 | Cap delivery top guide | |
| 86 | CF4400-01-034 | Acrylic 1 | |
| 88 | CF4300-03-108 | Height nut 2 | |
