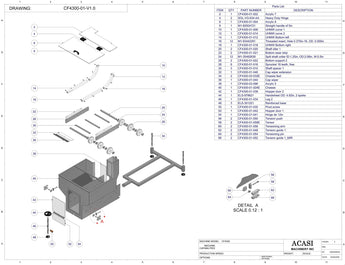

Cap Feeder Model CF4300 | Hopper



HOPPER   | ELEVATION TUNNEL

ELEVATION SYSTEM | ELECTRICAL PANEL

Item Part No. Part Name Price
2

CF4300-01-002

Acrylic 7
4 SOL-VG-634-AA Heavy Duty Hinge
6 CF4300-01-004 Acrylic 8
8 M1-82504721 Straight handle of 5in
10 CF4300-01-006 UHMW curve 1
12 CF4300-01-014 UHMW curve 2
14 CF4300-01-012 UHMW Bottom left
16 M1-93442291 Threaded insert, Hole 0.375in-16, OD: 0.500in
Item Part No. Part Name Price
18 CF4300-01-018 UHMW Bottom right
20 CF4300-01-020 Shaft idler 1
22 CF4300-01-021 Bottom wear strip
24 M1-35462639 Split shaft collar ID:1.25in, OD:2.06in, W:0.5in
26 CF4300-01-022 Bottom support 2
28 CF4300-01-016 Sprocket 18 teeth, free
30 CF4300-01-010 Shaft spacer 1
32 CF4300-01-046 Cap wiper extension
Item Part No. Part Name Price
34

CF4300-03-032E

Chassis feet
36

CF4300-01-044

Cap wiper
38

CF4300-03-096

Acrylic 5
40 CF4300-01-024E Chassis
42 CF4300-01-038 Hopper door 2
44 ELS-978621 Handwheel OD: 4.92in, 2 spoke
46 CF4300-01-034 Leg 2
48 ELS-301251 Reinforced base
Item Part No. Part Name Price
50

CF4300-01-030

Pivot screw
52

CF4300-01-042

Hopper door 1
54

CF4300-01-041

Hinge de 12in
56 CF4300-01-050 Tension push
58 CF4300-01-058E Tensor
60 CF4300-01-056 Tensioning arm
62 CF4300-01-048 Tension guide 1
64 CF4300-01-054 Tensioning pin
66 CF4300-01-052 Tension guide 1_MIR
