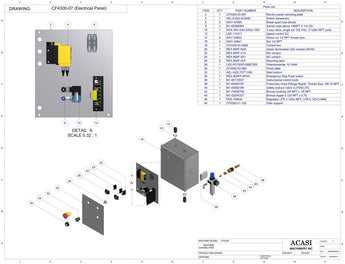

Cap Feeder Model CF4300 | Electrical Panel



HOPPER   | ELEVATION TUNNEL

ELEVATION SYSTEM | ELECTRICAL PANEL

Item Part No. Part Name Price
2

CF4300-03-087

Electric panel mounting plate
4 AEL-E3A2-XCM4D Switch fotoelectric
6 WAY-47065 Break apart fuse blocks
8 M1-82288564 Swivel male elbow 1/8NPT X 1/4 OD
10 ADA-35A-AAA-DAAJ-1KD 3 way valve, single sol 120 VAC, 0.125in NPT ports
12 LEE-174311 Speed control DC
14 WAY-24602 Dome nut 1/2 NPT thread size
16 WAY-24641 Nut 1/2 NPT
Item Part No. Part Name Price
18 CF4300-03-086E Control box
20 REX-800F-N3G Green illuminated LED module 24VAC
22 REX-800F-X10 NO contact
24 REX-800F-X01 NC contact
26 REX-800F-ALP Mounting latch
28 LEE-POTENTIOMETER Potentiomenter 10 OHM
30 CF4300-03-088 Panel plate
32 AEL-A22LTGT110M Start buttom
Item Part No. Part Name Price
34

REX-800FP-MT44

Emergency Stop Push button
36

M1-06172837

Instrumental control knob
38

M1-84930197

Pneumatic Hose Fittings Nipple; Thread Size: 3/8-18 NPT
40 M1-00092189 Safety lockout Valve 0,375X0,375
42 M1-74026758 Bronze bushing 3/8 NPT x 1/8 NPT
44 M1-02204337 Bronze nipple 0.125 NPT x 0.75
46 FES-159630 Regulator LFR 0.125in NPT, LFR-0.125-D-MINI
48 CF5200-01-102 Filter support
