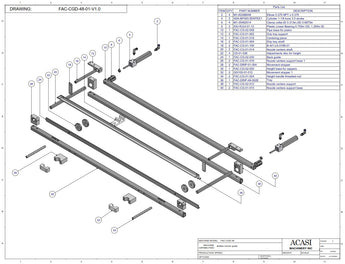

Automatic inline bottle filler machine, low and high viscosity, Assy FAC-CGD-48-01-V1.0, by Acasi Machinery Inc.

Bottles Centering Guide 48"

Item	Part No.	Part Name
2	M1-82288648	Elbow 0.375 NPT x 0.375
4	ADA-BF093.5DNTEE1	Cylinder 1-1/6 bore 3.5 stroke
6	M1-35462514	Clamp collar, ID 0.313in, OD 0.6875in
8	IGU-RJUI-01-12	Plastic Linear Bearing 0.750in OD, 1.250in ID
10	FAC-CG-01-008	Pipe base for piston
12	FAC-CG-01-002	Drip tray support
14	FAC-CG-01-018	Centering piece
16	FAC-CG-01-004	Drip tray shaft

Item	Part No.	Part Name
18	FAC-CG-01-100	B-AI-LA-0188-01
20	FAC-CG-01-014	Nozzle centers shaft
22	CD-01-026	Adjusments disc for height
24	FAC-CG-02-030	Back guide
26	FAC-CG-01-016	Nozzle centers support base 1
28	FAC-DRIP-01-004	Movement stopper
30	FAC-CG-02-020	Height base for cappers
32	GI3100-01-012	Movement stopper 1
34	FAC-CG-01-024	Height handle threaded rod
36	FAC-DRIP-48-002E	Tray
38	FAC-CG-02-012	Nozzle centers support
40	FAC-CG-01-010	Nozzle centers support base

Bottles Centering Guide 48"
