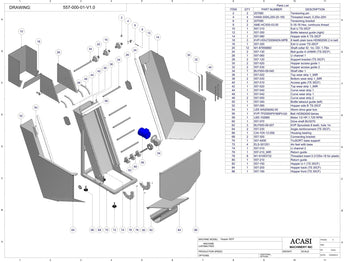

Bottle Unscrambler Trusort-48 / 60 / SO | Hoppers 35 CF

Request a Quote

Hopper 15 CF | Hopper 25 CF | Hopper 35 CF | Hopper 100CF

Item	Part No.	Part Name	Price
2	207080	Tensioning pin
4	HANS-SSKL250-20-165	Threaded insert, 0.25in-20H
6	BU7000-09-038	Tensioning bracket
8	AME-HCX05-03.00	5-16-18 Hex, continuos thread
10	557-310	Exit U TS-35CF
12	557-350	Bottle takeout guide (right)
14	557-080-V1.1	Hopper side A TS-35CF
16	KVP-HDU72008AEN-MPB	8 teeth plain bore HDS62000 2 in belt

Item	Part No.	Part Name	Price
18	557-320	Exit U cover TS-35CF
20	M1-87856860	Shaft collar ID: 1in, OD: 1.75in
24	557-130	Belt guide A UHMW (TS-35CF)
26	557-060	U channel 1
28	557-120	Support bracket (TS 35CF)
30	557-520-V1.1	Hopper access guide 1
32	557-530-V1.1	Hopper access guide 2
34	BU7000-09-040	Shaft idler 1

Item	Part No.	Part Name	Price
36	557-022	Top wear strip 1_MIR
38	557-030	Bottom wear strip 1_MIR
40	557-510-V1.1	Access gate (TS 35CF)
42	557-020	Top wear strip 1_MIR
44	557-040	Curve wear strip 1
46	557-042	Curve wear strip 1
48	557-050	Curve wear strip 2
50	557-340	Bottle takeout guide (left)

Item	Part No.	Part Name	Price
52	557-090	Hopper side B TS-35CF
54	LEE-W5205092.00	Single reduction gear box, Series: 520, Ratio: 100, Nema C Input flange: 56C. (FMHQ-520-100-H-L-56-16)
56	KVP-7F20SWP0180P3120	Band HDS62000 Series, Nominal 18", Price per ft
58	LEE-102860	Motor 1/2 HP,1.725 RPM
60	557-070	Drive shaft BU3070
62	BU7000-09-007	KVP Sprockets 8 teeth, hole 1in
64	557-230	Angle reinforcement (TS 35CF)
66	CAI-10X-13-056	Housing bearing

Item	Part No.	Part Name	Price
68	557-300	Connecting bracket
70	557-400E	TruSORT base support
72	ELS-301251	4in feet with base
74	557-010	U channel 2
76	557-210_MIR	Return guide
78	M1-91093732	Threaded insert 0.3125in-18 for plastic
80	557-210	Return guide
82	557-150	Hopper U-1 (TS 35CF)

Item	Part No.	Part Name	Price
84	557-200	Hopper back (TS 35CF)
86	557-190	Hopper front (TS 35CF)
