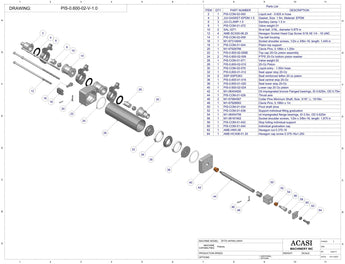

Automatic inline piston filler machine, high viscosity liquid products, pistons, Assy PIS-0.600-02-V1.0, by Acasi Machinery Inc.

$ 2,725.00

SANITARY PISTON

2.5oz | 5oz | 10oz | 20oz | 34oz | 170oz

Item	Part No.	Part name	Price
2	PIS-COM-02-050	Liquid exit - 0.625 in hose
4	JUI-GASKET-EPDM-1.5	Gasket, Size: 1.5in, Material: EPDM
6	JUI-CLAMP-1.5	Sanitary clamp 1.5 in
8	PIS-COM-01-072	Valve weight 01
10	AME-SCX05-06.25	Hexagon Socket Head Cap Screw 5/16 X6 1/4
12	SAL-3271	St-st ball, 316L, diameter 0.875 in
14	PIS-COM-02-058	Top ball housing
16	M1-67314849	Socket shoulder screws, 1/2in x 3/8in-16
18	PIS-COM-01-004	Piston top support
20	M1-67926766	Clevis Pins, 0.188in x 1.25in
22	PIS-0.600-02-006E	Top cap 20-Oz piston assembly
24	PIS-0.600-02-008	PTFE 20-Oz bottom piston washer
26	PIS-COM-01-071	Valve weight 02
28	PIS-0.600-02-010	20-Oz Piston
30	PIS-COM-02-076	Liquid entry - 1.00in hose
32	PIS-0.600-01-012	Seal upper stop 20-Oz
34	SSP-SSP5363	Seal reinforced teflon 20 oz piston
36	PIS-0.600-01-016	Seal central stop 20-Oz
38	PIS-0.600-01-020	Seal lower stop 20-Oz
40	PIS-0.600-02-024	Lower cap 20-Oz piston
42	M1-06454920	Oil impregnated bronze Flanged bearings
44	PIS-COM-01-028	Thrust axis
46	M1-67984567	Cotter Pins Minimum Shaft, Size: 3/16"
48	M1-67926683	Clevis Pins, 0.188in x 1in
50	PIS-COM-01-034	Pivot shaft drive
52	PIS-COM-01-036	Support individual filling graduation
54	M1-06454706	oil impregnated flange bearings, ID 0.5in, OD 0.625in, flange OD 0.875in
56	M1-06181952	Socket shoulder screws, 1/2in x 3/8in-16
58	PIS-COM-01-042	Stop fulling individual support
60	PIS-COM-01-044	Individual graduation cap
62	AME-HNX-06	Hexagon nut 0.375-16
64	AME-HCX06-01.25	Hexagon cap screw 0.375-16x1.250

20 Oz Sanitary Piston
